Dual-Mono Designed for Right-Left Independence
C-03X

Top/small>



C-03X

Bottom



The dual-mono design enables the C-03X to have a power source and a power transformer for each of the right and left channels. This was done in order to eliminate mutual interference between the channels and to prevent noise being introduced from the power line. Pure and clean amplification is the great outcome.

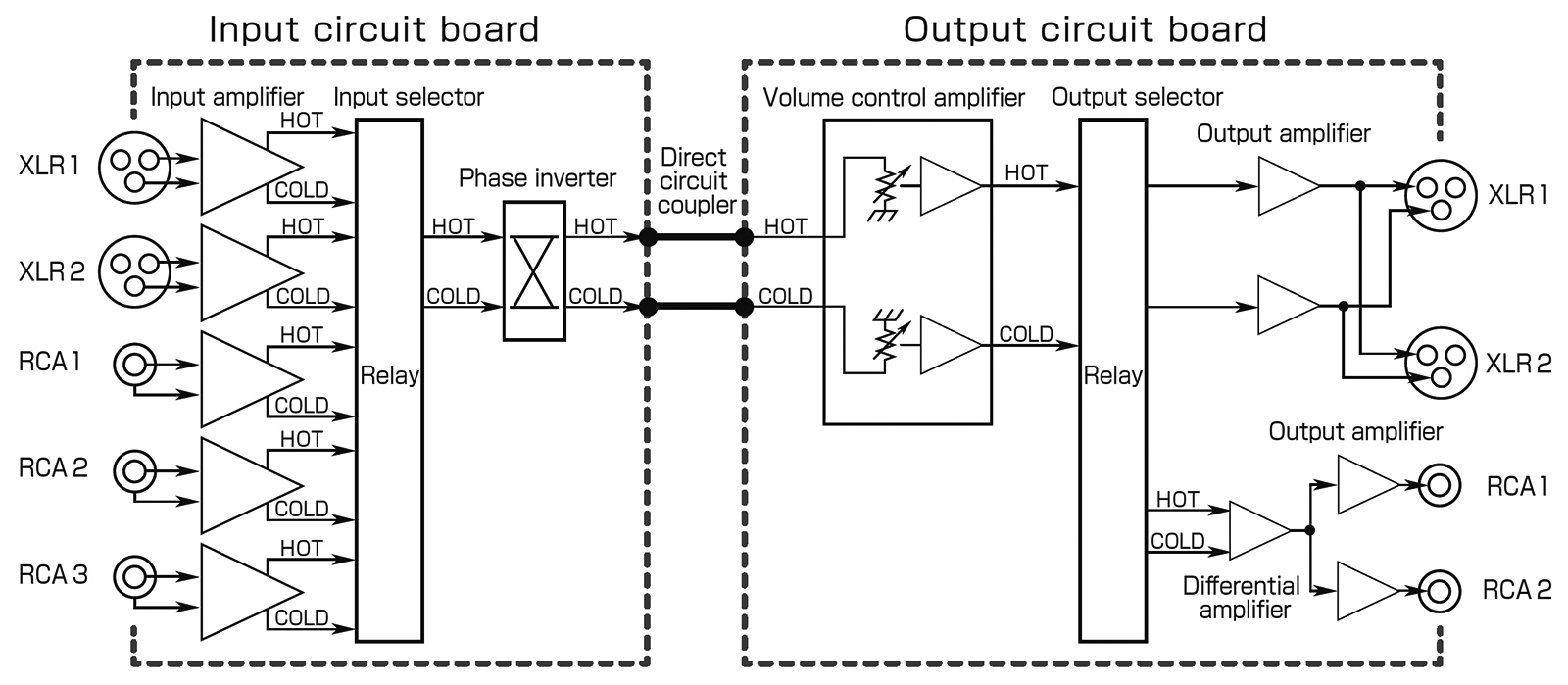

A Fully-Balanced Configuration Gives an Excellent S/N Ratio
C-03X

Signals are received through the fully-balanced input buffer amplifier design for an individual input system and maintains this balanced transmission at low impedance, so that all inputs can remain free from common mode noise. This fully-balanced configuration increases the purity of signal transmission and provides an absolutely excellent audio S/N ratio.
Version-up service is available that changes the RCA3 Input into MM/MC-compatible PHONO input.

ESOTERIC-QVCS

ESOTERIC-QVCS (*) is a volume control system, which takes full advantage of unit’s pure signal paths. By turning the volume knob, the gain variable volume of all the four circuits – right and left channels, positive and negative powers – are activated. In this way, this system keeps audio signals independent (from right to left and from positive to negative), so that sounds are reproduced clearly with good channel separation and accurate phase characteristics. Furthermore, the deletion of cabling from the audio board to the volume device radically shortens the audio signal path and minimizes sound deterioration. As a result, the C-03X can now reproduce sounds that are perfectly suitable for a high-end preamplifier.
*: QVCS: Quad Volume Control System

Low Noise Operation

The control board for the entire ESOTERIC-QVCS is physically separated from the audio circuit and also electrically isolated using a photo coupler. The circuit design has also taken measures to make sure that microcomputer noise is not introduced into the audio path. This is accomplished by disabling the microcomputer until a function is initiated by the user.

Low Impedance, High Response Power Circuit (Three Transformers)
C-03X

Three different transformers for the three different power sources – the audio circuits of both the right and the left channels along with the control section – combined with large capacitors make this extremely clean low impedance and high response power circuit possible.

ESOTERIC-HCLD (*) ESOTERIC’s Own Output Buffer Circuit with Fortified Current Transmission Enhances the Driving Performance of the Power Amplifier
C-03X

Looking at the subtleties of the signal transmission between preamplifier and power amplifier, the ability of the component to transfer current efficiency determines the overall quality of the system. The preamplifier plays a significant role in this relationship. Serving as a line driver, it should fully drive the power amplifier to its maximum level to thoroughly convey music signals that can include such a broad range of music expression, from pianissimo to fortissimo. What is required here is high performance via high speed current transmission.

For the purpose of attaining the ultimate performance of the C-03X as a line driver, the output buffer amplifier circuit uses high quality materials and has its own board separate from the input stage. The output buffer circuit provides the high performance necessary. Its slew rate, representing response speeds of 2,000 V/microsecond – is incredibly fast. Since this buffer circuit is provided to each RCA output terminal and to the hot and cold pins of the XLR output, the instant current supplied gets maximized. The C-03X reenacts the breathtaking reality of music whose dynamism tended to disappear in older systems during smaller current transmissions between the preamplifier and a power amplifier.
* HCLD: High Current-capacity Line Driver

Extraordinary Usability
  • Gain per input is widely adjustable with a precision of +/-18 dB = 0.5 dB per step. This reduces volume variations from source to source.
  • Volume balance between the right and left channels is adjustable with a precision of +/-6 dB = 0.5 dB per step.
  • The output phase invert function allows an output that is appropriate for the power amplifier used. In addition, it is possible to individually determine a source-specific output phase and to easily implement phase management for the system.
  • Unbalanced output (RCA), balanced output (XLR) and RCA + XLR simultaneous output are the options.
  • RCA-2 terminals are provided to switch between normal line output and AV through output. This function allows you to connect AV preamp to the C-03X, sharing the same front two-channel speakers (and its dedicated amplification system) between music and surround movie applications.
  • Source equipment names on the display can be programmed into the system using the remote controller.
  • Display dimmer, mute, auto-display-off functions are also available.
MM/MC phono stage board (option)
  • Dual mono” construction provides excellent signal separation between left and right channels.
  • MC load impedance value is selectable between 20, 100, and 300 ohms
  • Functions are easily accessible by using remote controller.
  • 4-layer print circuit board achieves the shortest possible signal path.
  • Unique power regulator design minimizes unwanted sonic interference to the line stage.
  • Noise-free, shielded internal wirings.

*The installation of the board includes hardware and software updates of the main unit, thus can only be done at our factory. Please contact your local authorized ESOTERIC dealer for more information.

C-03X

MM/MC phono stage board



Control Knob – Function and Flexibility
C-03X

The volume knob operates internal gain variable circuits which allows you to choose one of five volume curve options.This flexibility allows you to select the best operability based on the combined efficiency of a specific power amplifier and speakers.
The control knob and the input selector are manufactured by machining a large aluminum block. The bold but precise finishing, using NC machining, and the ergonomic rounded form provides a pleasing aesthetic appearance along with necessary functionality.
* The volume curve op tions allow you to fine-tune, at low or high volume, a smooth linear increase in volume. It enables you to choose a curve that best suits your system.

Newly Designed 3D Optimized Chassis Structure
C-03X

Our new 3D optimized chassis features a four compartment structure. Each circuit block is housed in its own compartment so as to place them three dimensionally. This structure greatly contributes to reducing mutual interference between circuits and provides the shortest signal path. Thick aluminum is used for the exterior. The 5 mm-thick steel bottom chassis is supported at four points using ESOTERIC’s proprietary ‘Pinpoint Foot’ (patent number: JP4075477). Vibrations have been suppressed effectively and high rigidity has been achieved.

Aesthetics and Integrity of the System Achieved by Rounded Form

Adding the C-03X to the system will provide an aesthetic integrity to the system. The front, top and side panels along with the front corners are made of thick aluminum. The rounded shape of the top panel and the corners, where there are no screws at all, are inherited designs from the separate component system of the ESOTERIC flagship line.

C-03X左:G-01 / 右上:P-02 / 右下:D-02



List of Awards

C-03X Ongen Shuppan Publising Co., Ltd.
Audio Excellence Awar 2014
Pre-amplifier category, SIlver Prize
C-03X Ongaku no Tomo Sha Corporation
STEREO Best Buy Component2015
Control Amplifier category (JPY550k to 1,200k)
C-03X Stereo Sound Publishing Inc.
Best Buy Component 2013-2014
Pre-amplifier category (JPY600k to 1,000k)
C-03X Ongen Shuppan Publising Co., Ltd.
Visual Grand Prix 2015 SUMMER
Pre-amplifier category (sub JPY1,000k)
C-03X Ongen Shuppan Publising Co., Ltd.
Visual Grand Prix 2015
Pre-amplifier category (sub JPY1,000k)
C-03X Ongen Shuppan Publising Co., Ltd.
Visual Grand Prix 2014 SUMMER
Pre-amplifier category (sub JPY1,000k)

Reviews

There are no reviews yet.

Be the first to review “Esoteric C-03X Linestage Preamplifier (Trade-in)”

Your email address will not be published. Required fields are marked *

Esoteric C-03X Linestage Preamplifier (Trade-in)

Features HT Bypass and Remote

Excellent condition – see photos

Includes original packaging

$7,500

Free & fast shipping Australia wide

Stripe Payments Secure Checkout

Features HT Bypass and Remote

Excellent condition – see photos

Includes original packaging
